Curve clustering methods and their applications to sports analytics

Robert Bajons | Joint work with Kurt Hornik | 17 Dec. 2023

Vienna University of Economics and Business

CMStatistics 2023

1 / 24

Motivation2 / 24

Motivation

Curves (spatio-temporal observations) are common in sports analysis:
- Movement of players on the pitch.
- Sequences of actions on the pitch.
$\Rightarrow$ studying patterns in curves allows for interesting insights.

3 / 24

Motivation

Curves (spatio-temporal observations) are common in sports analysis:
- Movement of players on the pitch.
- Sequences of actions on the pitch.
$\Rightarrow$ studying patterns in curves allows for interesting insights.
Depending on use case: assign weights to curves at each time point.
Finding structure in augmented data $\Rightarrow$ clustering algorithm for weighted curves needed.
Weights helpful to distinguish curves according to their worth $\Rightarrow$ obtain more representative patterns.

3 / 24

Motivation

Curves (spatio-temporal observations) are common in sports analysis:
- Movement of players on the pitch.
- Sequences of actions on the pitch.
$\Rightarrow$ studying patterns in curves allows for interesting insights.
Depending on use case: assign weights to curves at each time point.
Finding structure in augmented data $\Rightarrow$ clustering algorithm for weighted curves needed.
Weights helpful to distinguish curves according to their worth $\Rightarrow$ obtain more representative patterns.
Examples:
- Pass rush in the NFL: Derive pressure weights for each defender at each point in time.
- Possessions in soccer: Assign a threat value at each point in time, e.g. probability of scoring a goal after $i$ more actions.

3 / 24

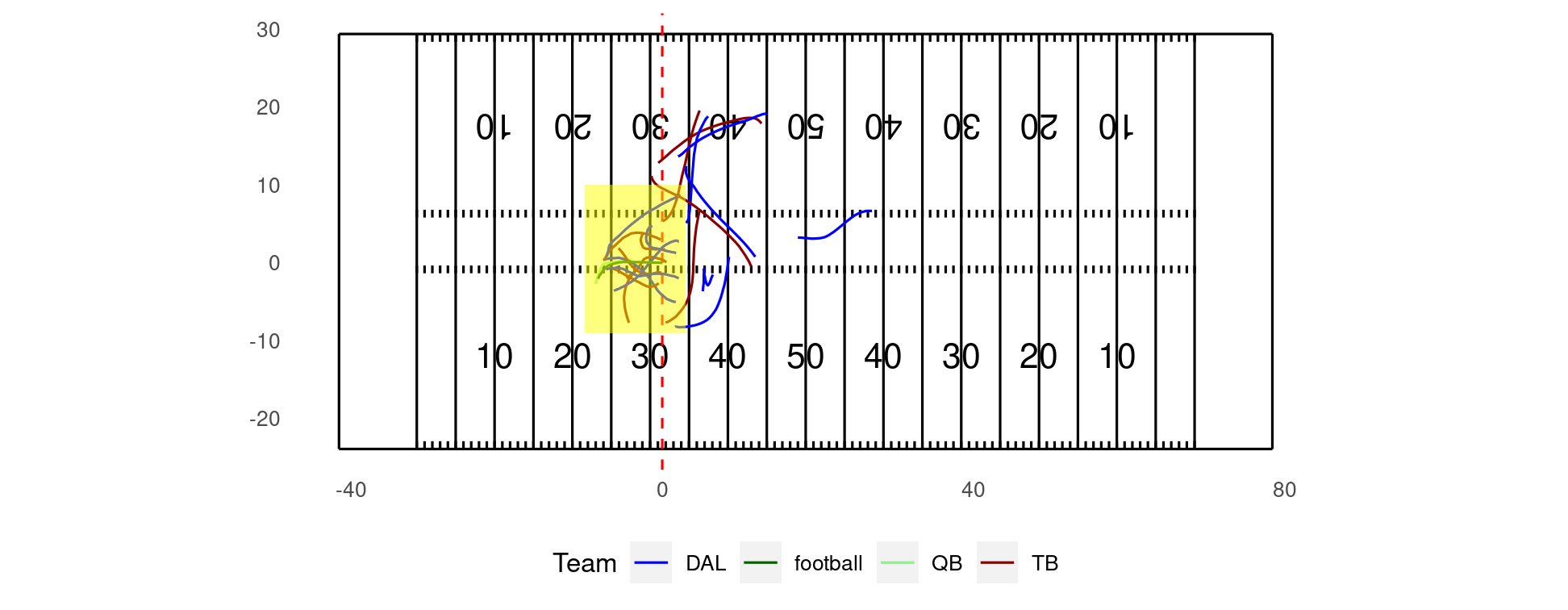

Motivation

Routes in the NFL: focus on pass rush.

4 / 24

Motivation

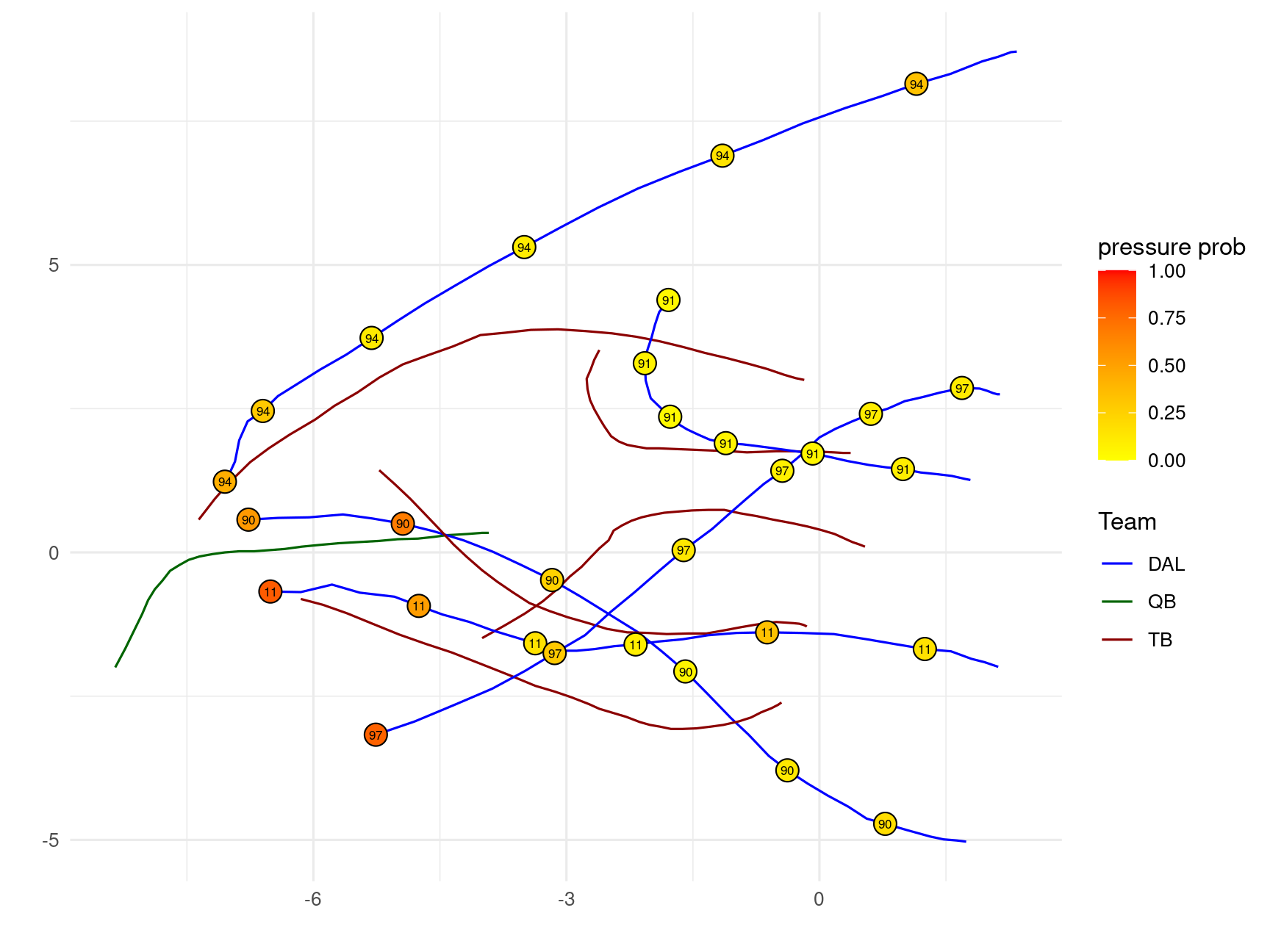

Pass rush in the NFL: add pressure weights.

5 / 24

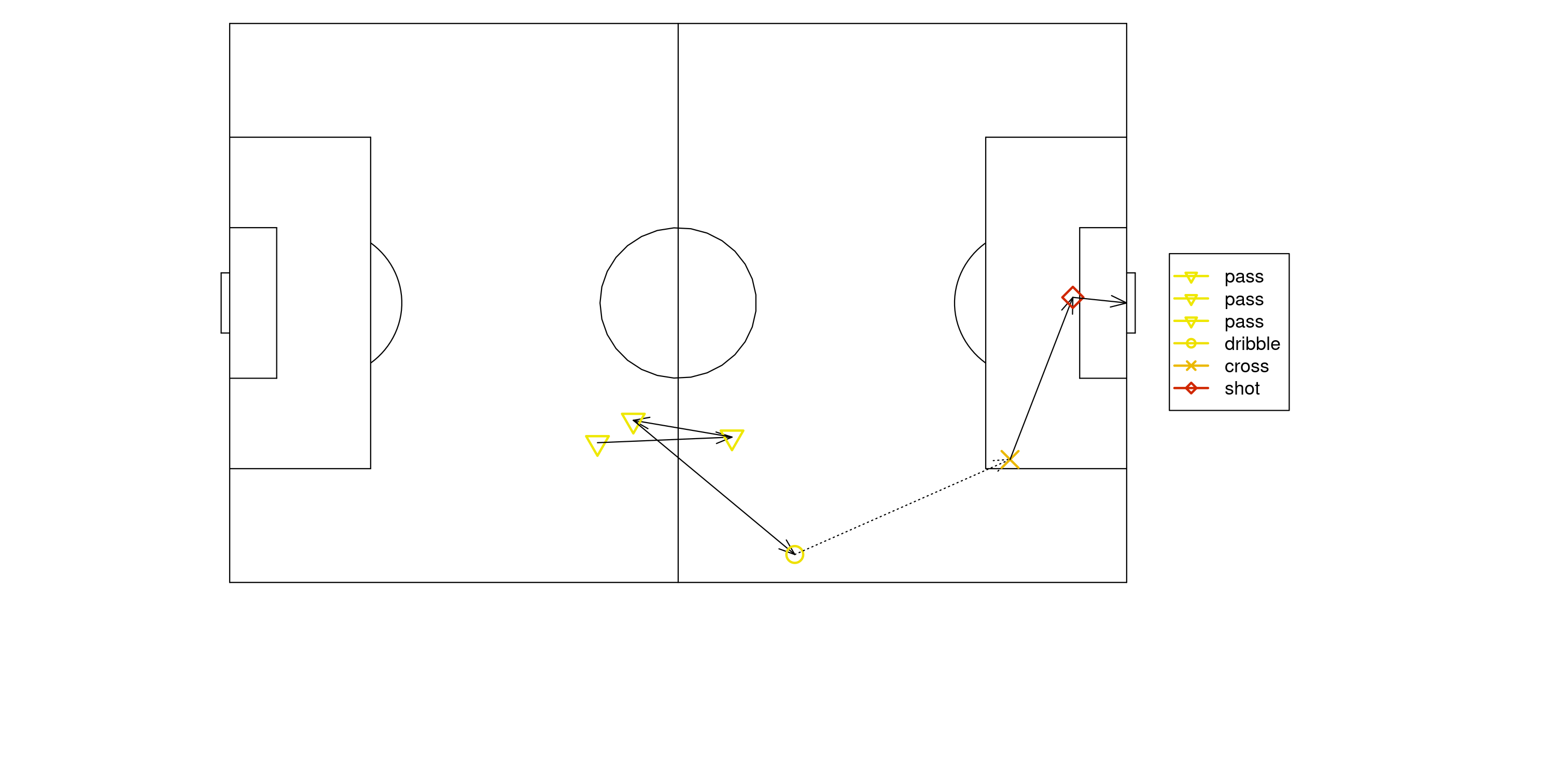

Motivation

Possessions in soccer.

6 / 24

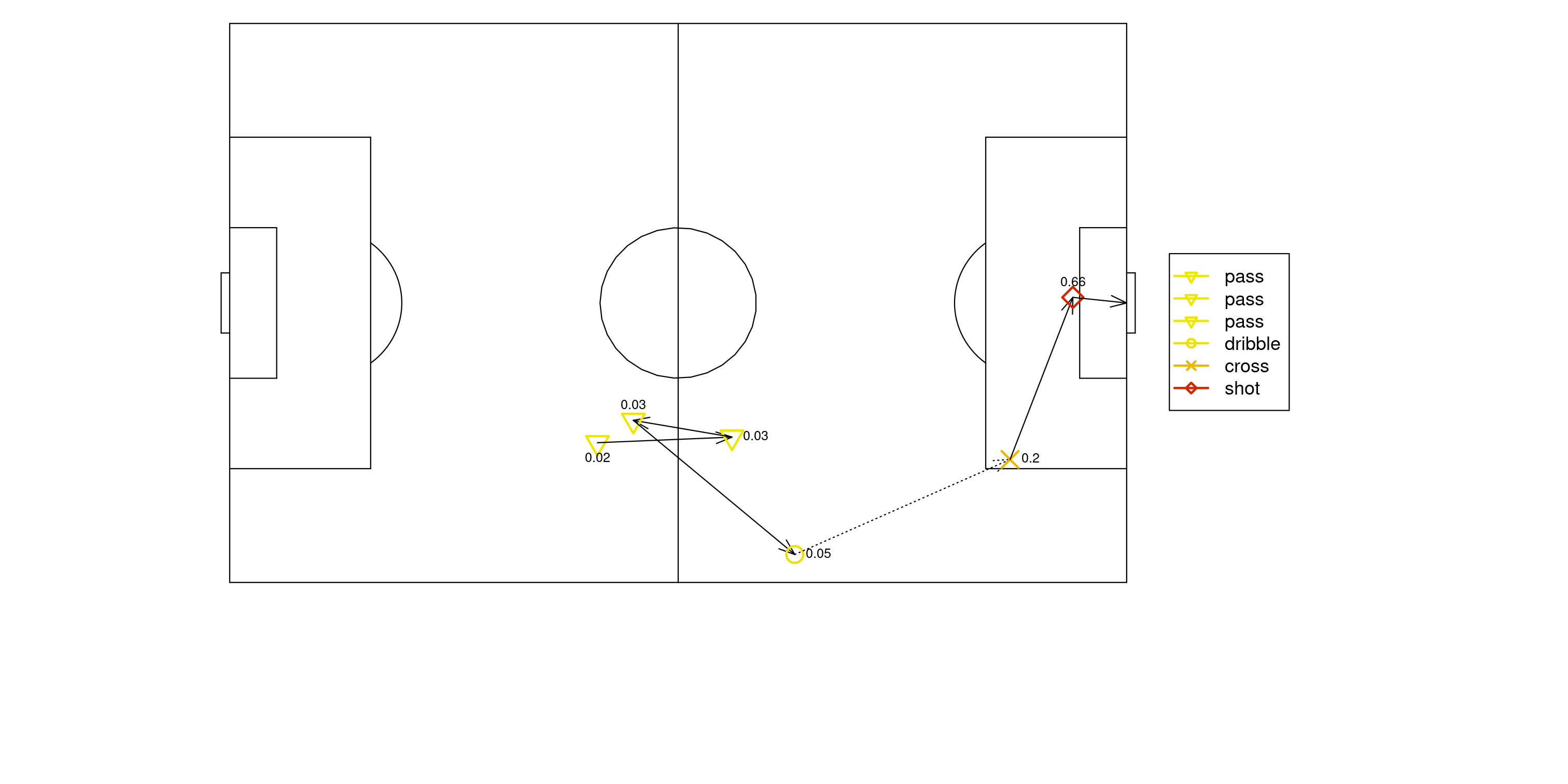

Motivation

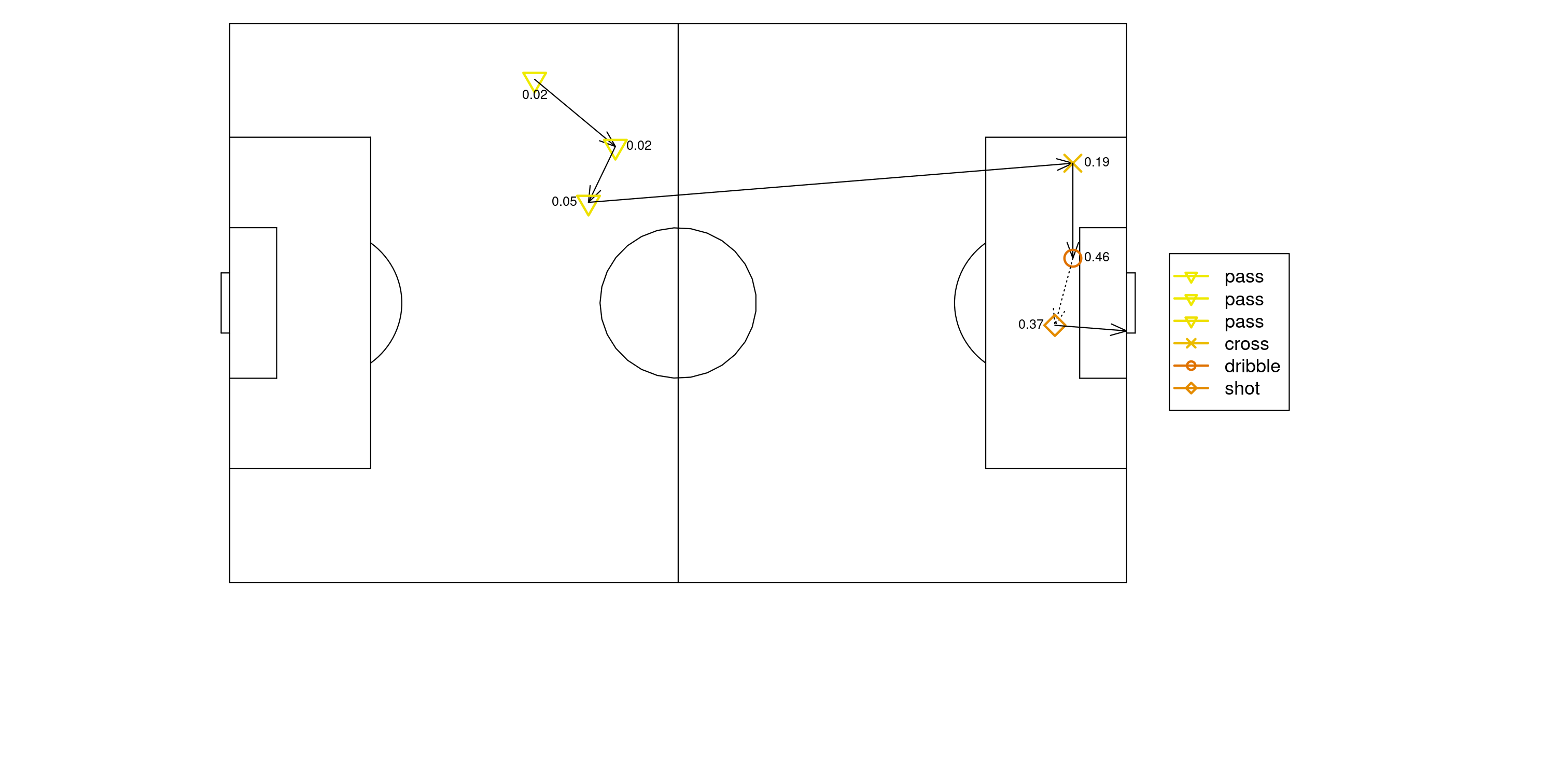

Possessions in soccer with goal scoring weights.

7 / 24

Motivation

Possessions in soccer with goal scoring weights.

8 / 24

Methodology9 / 24

Formal Description of the Problem

Observed data: $Z = {z_{1}, \dots, z_{n}}$ , set of $n$ curves.
Each $z_{i}$ is comprised of observations $z_{i t}$ , $t = 1, \dots, T$ .
- In our use cases: $z_{i t} = (x_{i}, y_{i})_{t}$ 2-dimensional.
At each $t$ : a weight $w_{i t}$ is assigned to $z_{i t}$ .

10 / 24

Formal Description of the Problem

Observed data: $Z = {z_{1}, \dots, z_{n}}$ , set of $n$ curves.
Each $z_{i}$ is comprised of observations $z_{i t}$ , $t = 1, \dots, T$ .
- In our use cases: $z_{i t} = (x_{i}, y_{i})_{t}$ 2-dimensional.
At each $t$ : a weight $w_{i t}$ is assigned to $z_{i t}$ .

Formal goal: Cluster curves $z_{i}$ ( $(x, y)$ -coordinates) while accounting for information from weights $w$ $\Rightarrow$ estimate good prototypes (cluster representants).

10 / 24

Formal Description of the Problem

Observed data: $Z = {z_{1}, \dots, z_{n}}$ , set of $n$ curves.
Each $z_{i}$ is comprised of observations $z_{i t}$ , $t = 1, \dots, T$ .
- In our use cases: $z_{i t} = (x_{i}, y_{i})_{t}$ 2-dimensional.
At each $t$ : a weight $w_{i t}$ is assigned to $z_{i t}$ .

Formal goal: Cluster curves $z_{i}$ ( $(x, y)$ -coordinates) while accounting for information from weights $w$ $\Rightarrow$ estimate good prototypes (cluster representants).

Initial idea: Use a $K$ -means type of algorithm for clustering.
Two adjustment of usual procedure necessary:
- Curve data adjustment (multiple time point).
- Weighted $K$ -means adjustment (weights at each time point).
Note: In many applications data preprocessing necessary to use $K$ -means algorithm.

10 / 24

From $K$ -means to weighted $K$ -means

Given a set of observations $X$ . Find partition into $K$ clusters represented by centroids/prototypes $p_{k}$ , $k = 1, \dots, K$ , by minimizing the within cluster sum of squares

$S = \sum_{k = 1}^{K} \sum_{i : g_{i} = k} (x_{i} - p_{k})^{2} \to min_{(p_{k}), (g_{i})}$

Hard problem to solve $\Rightarrow$ iterative procedure:
- Fix cluster assignment: each observation is assigned to the closest cluster
- Update optimal prototypes $p_{k}$ for a given assignment:

$p_{k} = \frac{1}{N_{k}} \sum_{i : g_{i} = k} x_{i}$

Repeat until convergence:
- Guaranteed to not increase objective function $S$ .
- Convergence only to local optimum $\Rightarrow$ vary starting assignments or use heuristics / prior information for starting values.

Given a set of observations $X$ , with each $x_{i} \in X$ associated with weight $w_{i}$ . Find partition into $K$ clusters by minimizing the weighted within cluster sum of squares

$S_{w} = \sum_{k = 1}^{K} \sum_{i : g_{i} = k} w_{i} (x_{i} - p_{k})^{2} .$

Solve via iterative procedure:
- assignment based on weighted squared distance.
- Prototypes (centers) $p_{k}$ are weighted cluster means:

$p_{k} = \frac{\sum_{i : g_{i} = k} w_{i} x_{i}}{\sum_{i : g_{i} = k} w_{i}} .$

Weights emphasize clustering on important observations.

11 / 24

$K$ -means for weighted curves

Observations: time series objects of the same length $z_{i} = (z_{i 1}, \dots, z_{i T})$ (component-wise weighted object).
Additional information from weights $w_{i} = (w_{i 1}, \dots, w_{i T})$ :
- Indicate how interesting observations are (use case dependent).
- Differ at each time point $\Rightarrow$ more and less important time points.

In the spirit of $K$ -means type of algorithms:

$\sum_{k = 1}^{K} \sum_{i : g_{i} = k} \sum_{t = 1}^{T} w_{i t} (z_{i t} - p_{t k})^{2} \to min_{(p_{t k}), (g_{i})} .$

12 / 24

$K$ -means for weighted curves

Iterative refinement procedure:

Initialize appropriate starting assignments of clusters.
For given cluster assignment find the optimal prototypes (component-wise): $p_{k t} = \frac{\sum_{i : g_{i} = k} w_{i t} z_{i t}}{\sum_{i : g_{i} = k} w_{i t}} .$
Given prototypes find optimal cluster assignments by minimizing $\sum_{t = 1}^{T} w_{i t} (z_{i t} - p_{k t})^{2}$ over $k$ .
Repeat steps 2-3 until convergence, i.e. until change in function to optimize is below some tolerance level.

13 / 24

Implementation in R

Implementation hinges on three functions:

Consensus function C: computes the optimal prototypes for given cluster assignment.
Dissimilarity function D: computes (weighted) distance for each observation to cluster.
Error function E: evaluates objective function for given assignments and prototypes.

Advantages:

Simplicity: easy implementation, easily adoptable for use cases with weighted curves (component-wise weighted objects).
Efficiency: Only looping over clusters necessary, making use of vectorized R operation.
Flexibility:
- Extendable to allow for soft clustering.
- Implementation of other distance measures intuitive (adjustment of C, D and E).

14 / 24

Extensions

What about soft clustering?

Fuzzy $K$ -means: derive optimal prototypes and allow for mixed membership of the observations to clusters.
Fuzzy extension of weighted $K$ -means:

$\sum_{i = 1}^{N} \sum_{k = 1}^{K} \sum_{t = 1}^{T} u_{i k}^{m} w_{i t} (z_{i t} - p_{k t})^{2} \to min_{(u_{i k}), (p_{t k})}$

15 / 24

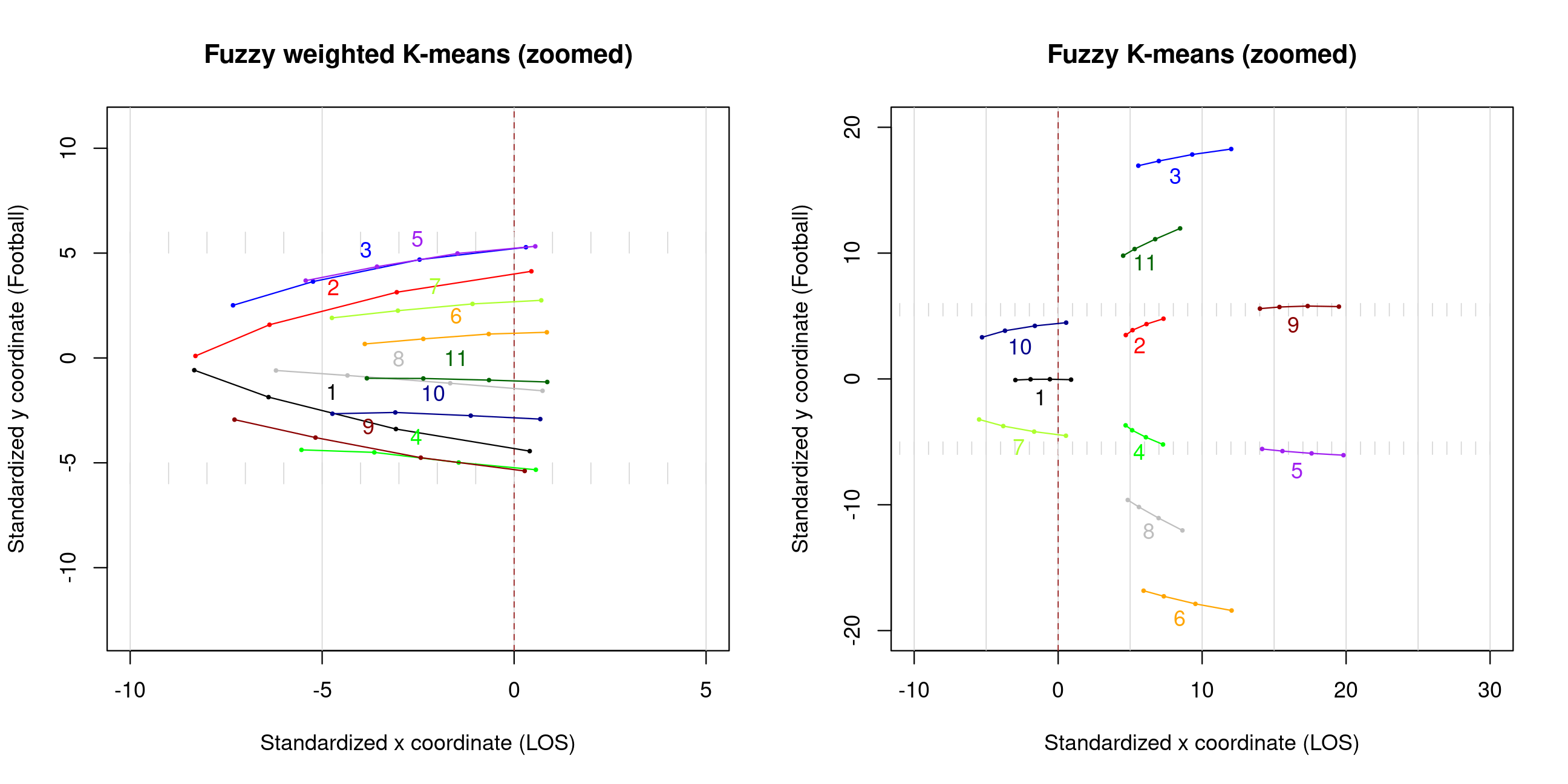

Extensions

What about soft clustering?

Fuzzy $K$ -means: derive optimal prototypes and allow for mixed membership of the observations to clusters.
Fuzzy extension of weighted $K$ -means:

$\sum_{i = 1}^{N} \sum_{k = 1}^{K} \sum_{t = 1}^{T} u_{i k}^{m} w_{i t} (z_{i t} - p_{k t})^{2} \to min_{(u_{i k}), (p_{t k})}$

Solve via adapted iterative procedure:
- optimal prototypes given membership degrees: $p_{k t} = \frac{\sum_{i = 1}^{N} u_{i k}^{m} w_{i t} z_{i t}}{\sum_{i = 1}^{N} u_{i k}^{m} w_{i t}}$ .
- derive membership degrees given prototypes: $u_{i k} = (\sum_{j = 1}^{K} (\frac{d (z_{i}, w_{i}, p_{k})}{d (z_{i}, w_{i}, p_{j})})^{\frac{1}{m - 1}})^{- 1}$ , where $d (z_{i}, w_{i}, p_{k}) = \sum_{t = 1}^{T} w_{i t} (z_{i t} - p_{k t})^{2}$ .
Implementation in R follows similar idea as before $\Rightarrow$ adjust C and E, implement function U for membership degrees.

15 / 24

Application16 / 24

Pass rush in the NFL

NFL tracking data:
- Routes for every player on every passing play of the first half of the 2021/22 season (~ 7200 plays).
- Route information from start of the play until relevant event (pass/fumble).
- $\sim$ 80000 Routes of defensive players to cluster.
Initial preprocessing:
- Standardize each play to line of scrimmage ( $x$ -axis) and football ( $y$ -axis).
- Plays of different lengths $\Rightarrow$ Use Bézier approximations to transform data to same dimension (necessary for $K$ -means type algorithms).
Augment data with pressure weights:
- Estimate probability of defender being able to pressure the quarterback $\Rightarrow$ gradient boosting tree model.

17 / 24

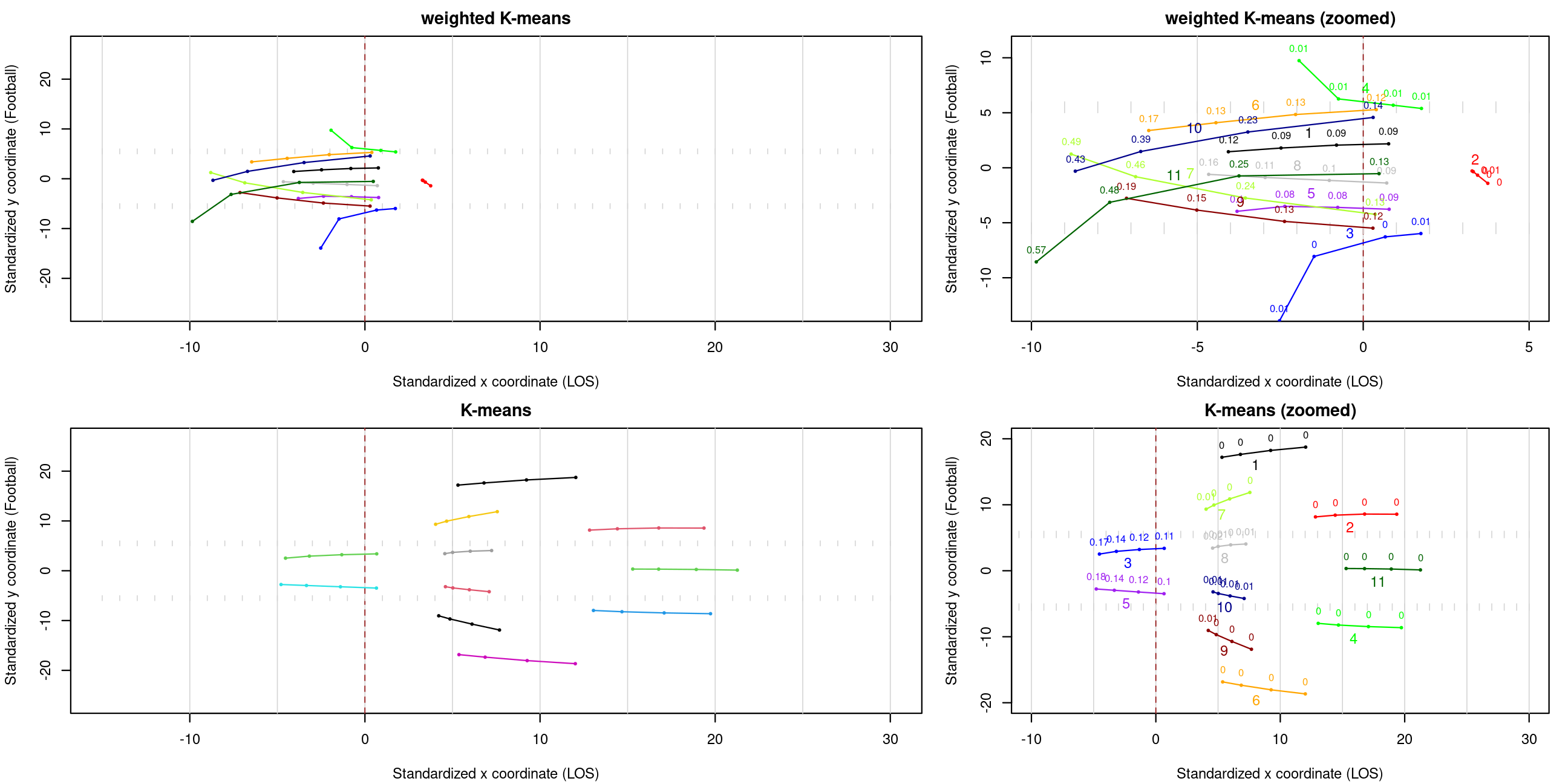

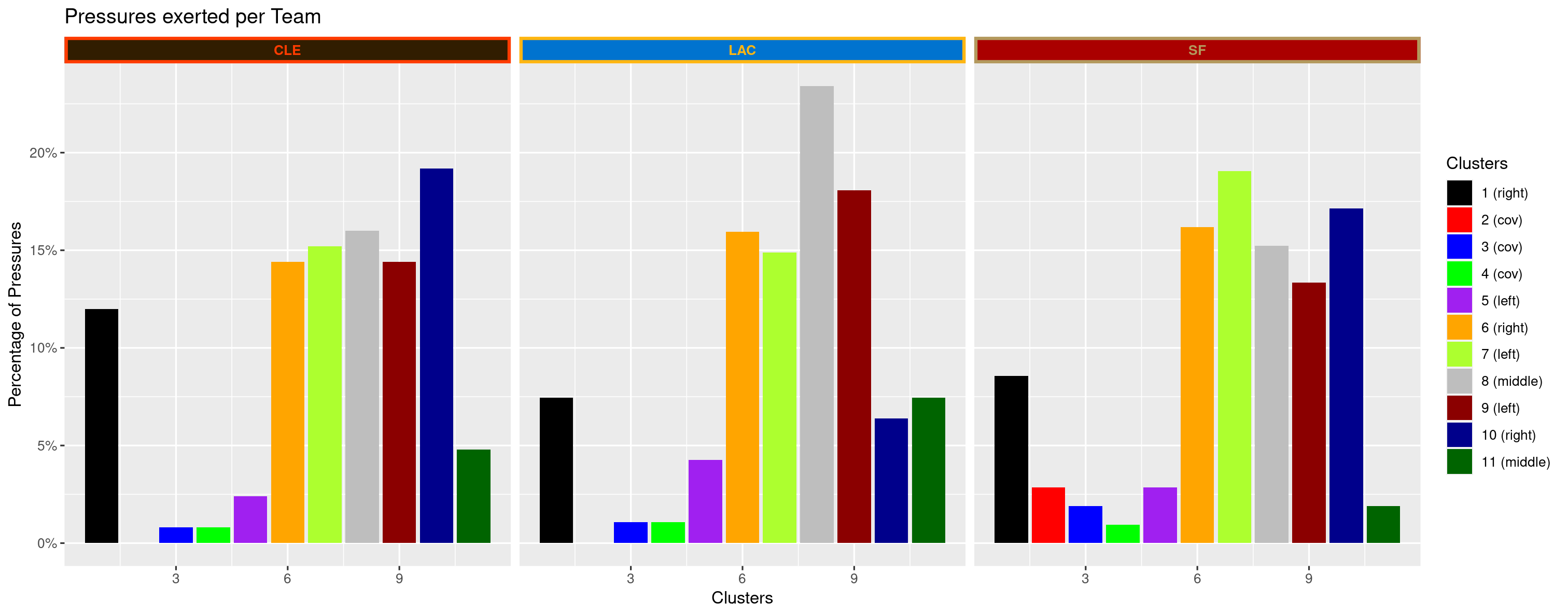

Pass rush in the NFL

18 / 24

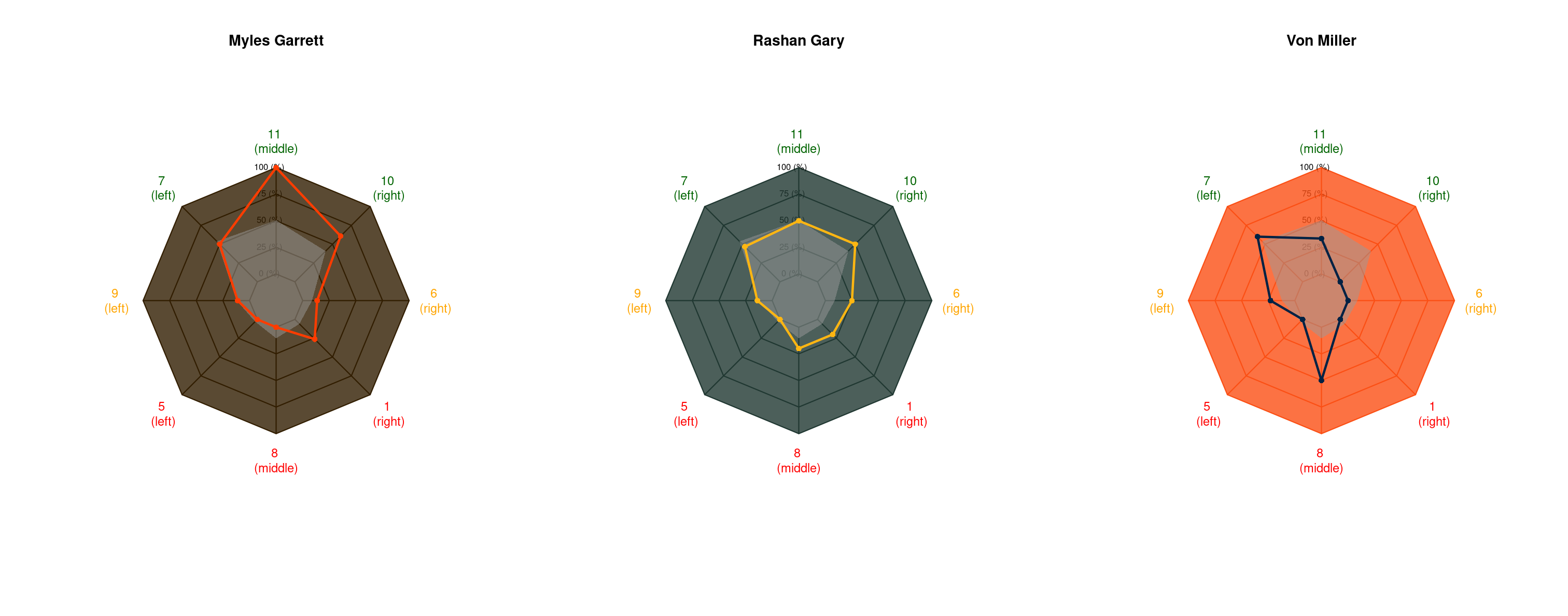

Pass rush in the NFL

19 / 24

Possessions in soccer

Event stream data:
- Events from all matches from the 2017/18 season of 5 top leagues in Europe (Bundesliga, La Liga, Ligue 1, Premier League, Seria A)
Preprocessing:
- Standardize such that offense always plays from left to right.
- Build data set of possession: Sequence of consecutive actions by one team.
- Consider only possession of length 6 $\Rightarrow$ around 27000 possessions to cluster.
Augment data with goal scoring weights:
- Combine models that value actions (VAEP, xT and xG).

20 / 24

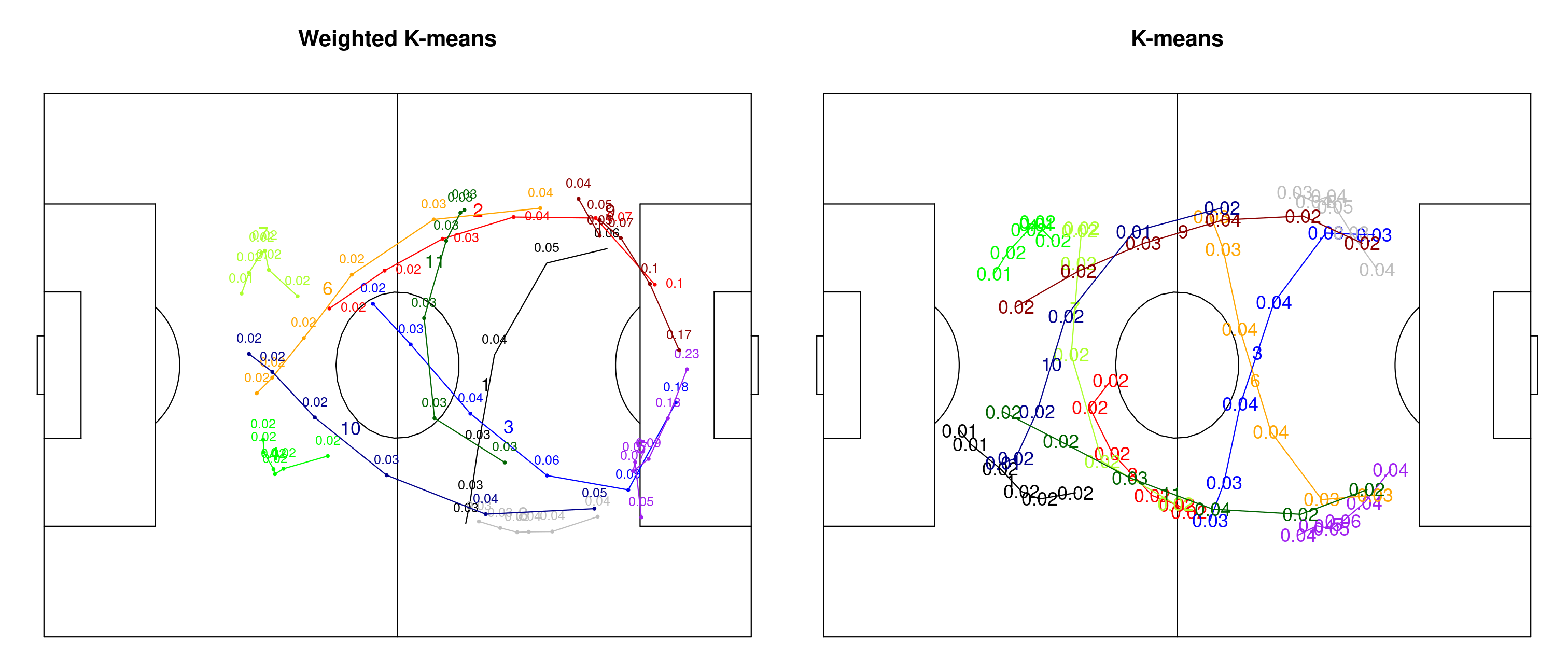

Possessions in soccer

21 / 24

Conclusion22 / 24

Conclusion

Sports data is full of spatio-temporal measurements (curves) $\Rightarrow$ Finding patterns in the data allows interesting insights.
In most cases: augmenting curves with weights is quite intuitive $\Rightarrow$ allows for clustering of interesting routes.
We derived a weighted $K$ -means type of algorithm for component-wise weighted curves/objects.
- Derivation of iterative refinement procedure.
- Implementation in R.
- Extension to fuzzy $K$ -means for weighted curve data.
Applications:
- Pass rush in the NFL, Possessions in soccer.
- Weighted $K$ -means provides more desirable clustering.
- Clustering can be used for analyses or in downstream task.
Future work:
- Time dependent fuzzy clustering.

23 / 24

Thank You!

Contact: robert.bajons@wu.ac.at

24 / 24
